1620254 | Phoenix Contact

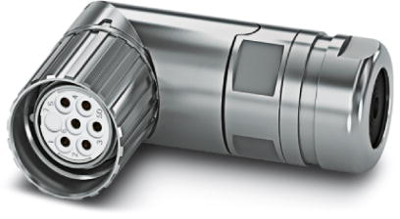

Jack, M23, 9 pole, solder connection, screw locking, angled, 1620254
Unit Price (€ / pc.)
82.824 € *
Standard delivery time from the manufacturer is: 4 Weeks
Sensor-actuator connector, 1620254, Phoenix Contact
Cable connector, CA, angled, Screw locking, M23, No. of pole: 8+1, Direction of rotation: Standard, type of contact: Socket, Solder connection, cable diameter range: 6 mm - 10 mm.
Features
- Shielded
- Angled cable outlet for confined spaces
- Can be adapted to various applications, thanks to adjustable cable outlet direction
- Connector for flexible on-site assembly
- Consistent EMC protection for reliable transmission of signals
- Solder connection: proven connection technology for various litz wires
- Circular connector
Technical specifications
| Coding | N | |
| Type of locking | screw locking | |
| Thread size | M23 | |
| Degree of protection (IP) | IP67 | |
| contact surface | gold-plated | |
| Orientation | angled | |
| Pin number | 9 pole | |
| Assembly | cable assembly | |
| Contact connection | solder connection | |
| Product type | jack |
Download
Logistics
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
