1620170 | Phoenix Contact

Jack, M23, 6 pole, crimp connection, SPEEDCON locking, straight, 1620170

Order No.: 61P9888
EAN: 4046356818759
MPN:
1620170
CA-06S1N8A90DN
Series: CA
1620170 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
23.9904 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
23.99 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
23.9904 €

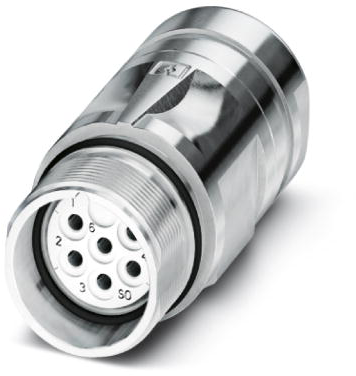

Coupler connector, 1620170, Phoenix Contact

Coupler connector, CA, straight, for standard and SPEEDCON interlock, M23, No. of pole: 6, Direction of rotation: Standard, type of contact: Socket, Crimp connection, cable diameter range: 3 mm - 14.5 mm.

Features

  • Shielded
  • Connector for flexible on-site assembly
  • Consistent EMC protection for reliable transmission of signals
  • Crimping connection: vibration- and temperature-resistant assembly
  • Circular connector
Technical specifications
Coding N
Type of locking SPEEDCON locking
Thread size M23
Degree of protection (IP) IP67
Orientation straight
Pin number 6 pole
Assembly cable assembly
Contact connection crimp connection
Product type jack
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description Lead
