1620162 | Phoenix Contact

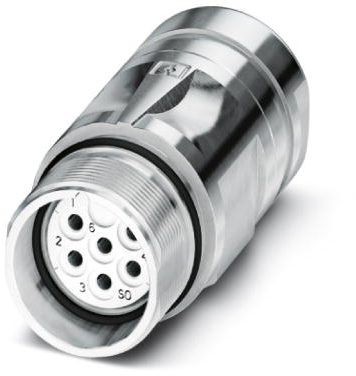

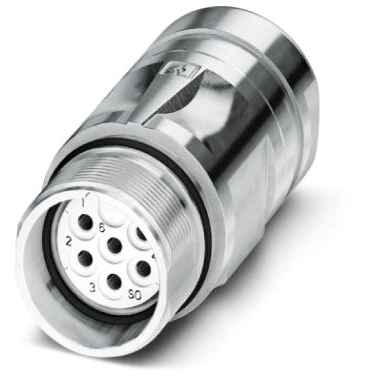

Socket, M23, 9 pole, crimp connection, SPEEDCON locking, straight, 1620162

Order No.: 62P0102
EAN: 4046356818834
MPN:
1620162
CA-09S1N8A90DN
Series: CA
1620162 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
23.9904 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
23.99 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
23.9904 €

Coupler connector, 1620162, Phoenix Contact

Coupler connector, CA, straight, for standard and SPEEDCON interlock, M23, No. of pole: 8+1, Direction of rotation: Standard, type of contact: Socket, Crimp connection, cable diameter range: 3 mm - 14.5 mm.

Features

  • Shielded
  • Connector for flexible on-site assembly
  • Consistent EMC protection for reliable transmission of signals
  • Crimping connection: vibration- and temperature-resistant assembly
  • Circular connector
Technical specifications
Type of locking SPEEDCON locking
Coding N
Degree of protection (IP) IP67
Assembly cable assembly
Contact connection crimp connection
Pin number 9 pole
Version socket
Orientation straight
Thread size M23
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
