1620150 | Phoenix Contact

Plug, M23, 17 pole, solder connection, SPEEDCON locking, straight, 1620150

Order No.: 62P0420
EAN: 4046356818940
MPN:
1620150
CA-17P1N1290DN
Series: CA
1620150 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
35.3192 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
35.32 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
35.3192 €

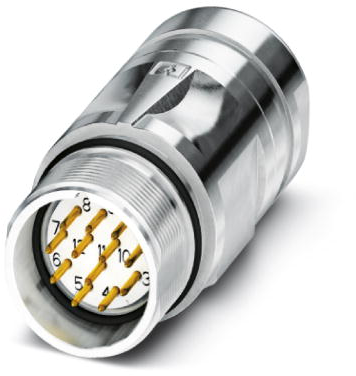

Coupler connector, 1620150, Phoenix Contact

Coupler connector, CA, straight, for standard and SPEEDCON interlock, M23, No. of pole: 17, Direction of rotation: Standard, type of contact: Pin, Solder connection, cable diameter range: 3 mm - 14.5 mm.

Features

  • Shielded
  • Connector for flexible on-site assembly
  • Consistent EMC protection for reliable transmission of signals
  • Solder connection: proven connection technology for various litz wires
  • Circular connector
Technical specifications
Filter Property Value
Pin number 17 pole
Thread size M23
Coding N
Assembly cable assembly
Degree of protection (IP) IP67
Product type plug
Type of locking SPEEDCON locking
contact surface gold-plated
Orientation straight
Contact connection solder connection
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
