1620079 | Phoenix Contact

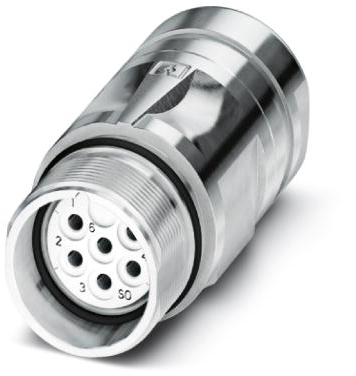

Socket, M23, 9 pole, solder connection, SPEEDCON locking, straight, 1620079

Order No.: 62P0074
EAN: 4046356819336
MPN:
1620079
CA-09S1N129007
Series: CA
1620079 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
29.6191 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
29.62 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
29.6191 €

Coupler connector, 1620079, Phoenix Contact

Coupler connector, CA, straight, for standard and SPEEDCON interlock, M23, No. of pole: 8+1, Direction of rotation: Standard, type of contact: Socket, Solder connection, cable diameter range: 6 mm - 10 mm.

Features

  • Shielded
  • Connector for flexible on-site assembly
  • Consistent EMC protection for reliable transmission of signals
  • Solder connection: proven connection technology for various litz wires
  • Circular connector
Technical specifications
Type of locking SPEEDCON locking
contact surface gold-plated
Coding N
Degree of protection (IP) IP67
Assembly cable assembly
Contact connection solder connection
Pin number 9 pole
Version socket
Orientation straight
Thread size M23
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
