1620042 | Phoenix Contact

Socket, M23, 7 pole, solder connection, SPEEDCON locking, straight, 1620042

Order No.: 61P9967
EAN: 4046356819558
MPN:
1620042
CA-07S1N129008
Series: CA
1620042 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
33.0939 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
33.09 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
33.0939 €

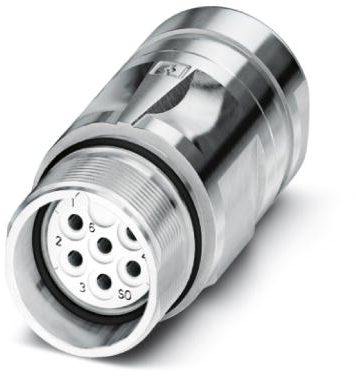

Coupler connector, 1620042, Phoenix Contact

Coupler connector, CA, straight, for standard and SPEEDCON interlock, M23, No. of pole: 7, Direction of rotation: Standard, type of contact: Socket, Solder connection, cable diameter range: 10 mm - 14.5 mm.

Features

  • Shielded
  • Connector for flexible on-site assembly
  • Consistent EMC protection for reliable transmission of signals
  • Solder connection: proven connection technology for various litz wires
  • Circular connector
Technical specifications
Pin number 7 pole
Type of locking SPEEDCON locking
Contact connection solder connection
Product type socket
Coding N
Assembly cable assembly
Orientation straight
Degree of protection (IP) IP67
Thread size M23
contact surface nickel-plated/gold-plated
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
Substance description Lead
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
