1620019 | Phoenix Contact

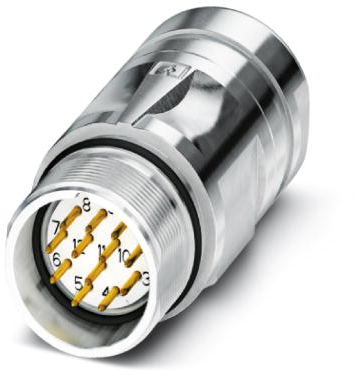

Plug, M23, 19 pole, solder connection, SPEEDCON locking, straight, 1620019
Unit Price (€ / pc.)
44.2323 € *
Standard delivery time from the manufacturer is: 4 Weeks
Coupler connector, 1620019, Phoenix Contact
Coupler connector, CA, straight, for standard and SPEEDCON interlock, M23, No. of pole: 16+3, Direction of rotation: Standard, type of contact: Pin, Solder connection, cable diameter range: 10 mm - 14.5 mm.
Features
- Shielded
- Connector for flexible on-site assembly
- Consistent EMC protection for reliable transmission of signals
- Solder connection: proven connection technology for various litz wires
- Circular connector
Technical specifications
| Thread size | M23 | |
| Pin number | 19 pole | |
| Assembly | cable assembly | |
| Product type | plug | |
| Type of locking | SPEEDCON locking | |
| Contact connection | solder connection | |
| Coding | N | |
| Degree of protection (IP) | IP67 | |
| Orientation | straight | |
| contact surface | gold-plated |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
