1619770 | Phoenix Contact

Socket, M23, 7 pole, crimp connection, screw locking, straight, 1619770

Order No.: 61P9989
EAN: 4046356821476
MPN:
1619770
CA-07S1N8A80DN
Series: CA
1619770 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
26.6917 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
26.69 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
26.6917 €

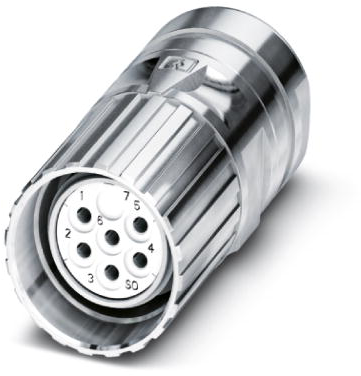

Sensor-actuator connector, 1619770, Phoenix Contact

Cable connector, CA, straight, Screw locking, M23, No. of pole: 7, Direction of rotation: Standard, type of contact: Socket, Crimp connection, cable diameter range: 3 mm - 14.5 mm.

Features

  • Shielded
  • Connector for flexible on-site assembly
  • Consistent EMC protection for reliable transmission of signals
  • Crimping connection: vibration- and temperature-resistant assembly
  • Circular connector
Technical specifications
Orientation straight
Degree of protection (IP) IP67
Product type socket
Type of locking screw locking
Pin number 7 pole
Thread size M23
Coding N
Contact connection crimp connection
Assembly cable assembly
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
Substance description Lead
