1619766 | Phoenix Contact

Socket, M23, 9 pole, crimp connection, screw locking, straight, 1619766

Order No.: 62P0097
EAN: 4046356821513
MPN:
1619766
CA-09S1N8A80DN
Series: CA
1619766 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
26.3704 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
26.37 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
26.3704 €

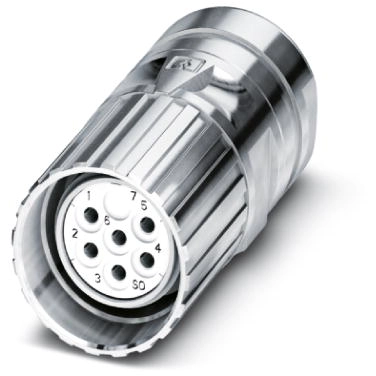

Sensor-actuator connector, 1619766, Phoenix Contact

Cable connector, CA, straight, Screw locking, M23, No. of pole: 8+1, Direction of rotation: Standard, type of contact: Socket, Crimp connection, cable diameter range: 3 mm - 14.5 mm.

Features

  • Shielded
  • Connector for flexible on-site assembly
  • Consistent EMC protection for reliable transmission of signals
  • Crimping connection: vibration- and temperature-resistant assembly
  • Circular connector
Technical specifications
Type of locking screw locking
Coding N
Degree of protection (IP) IP67
Assembly cable assembly
Contact connection crimp connection
Pin number 9 pole
Version socket
Orientation straight
Thread size M23
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
