1619631 | Phoenix Contact
Socket, M23, 12 pole, crimp connection, screw locking, straight, 1619631
Unit Price (€ / pc.)
31.4755 € *
Available in 10 days: 6 pcs. - if ordered today

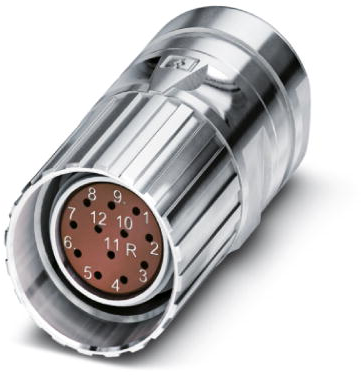

Sensor-actuator connector, 1619631, Phoenix Contact
Cable connector, CA, straight, Screw locking, M23, No. of pole: 12, Direction of rotation: Standard, type of contact: Socket, Crimp connection, cable diameter range: 3 mm - 14.5 mm.
Features
- Shielded
- Connector for flexible on-site assembly
- Consistent EMC protection for reliable transmission of signals
- Crimping connection: vibration- and temperature-resistant assembly
- Circular connector
Technical specifications
| Type of locking | screw locking | |
| Thread size | M23 | |
| Pin number | 12 pole | |
| Assembly | cable assembly | |
| Coding | N | |
| Orientation | straight | |
| Version | socket | |
| Contact connection | crimp connection | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
