1619615 | Phoenix Contact

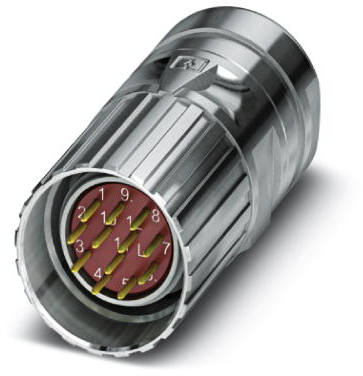

Plug, M23, 12 pole, crimp connection, screw locking, straight, 1619615

Order No.: 62P0140
EAN: 4046356822602
MPN:
1619615
CA-12M1N8A8503
Series: CA
1619615 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
32.5108 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
32.51 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
32.5108 €

Sensor-actuator connector, 1619615, Phoenix Contact

Cable connector, CA, straight, Screw locking, M23, No. of pole: 12, Direction of rotation: Standard, type of contact: Pin, Crimp connection, cable diameter range: 6 mm - 10 mm.

Features

  • Shielded
  • Connector for flexible on-site assembly
  • Consistent EMC protection for reliable transmission of signals
  • Crimping connection: vibration- and temperature-resistant assembly
  • Circular connector
Technical specifications
Type of locking screw locking
Coding N
Degree of protection (IP) IP67
Assembly cable assembly
Contact connection crimp connection
Pin number 12 pole
Version plug
Orientation straight
Thread size M23
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
