1619592 | Phoenix Contact

Plug, M23, 12 pole, solder connection, SPEEDCON locking, straight, 1619592

Order No.: 62P0173
EAN: 4046356822824
MPN:
1619592
CA-12P1N1280DNS
Series: CA
1619592 Phoenix Contact Sensor-Actuator Connectors

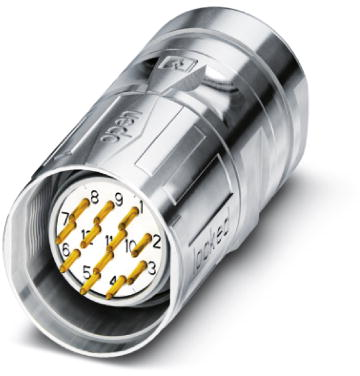

Image may differ
Unit Price (€ / pc.)
36.3545 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
36.35 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
36.3545 €

Sensor-actuator connector, 1619592, Phoenix Contact

Cable connector, CA, straight, SPEEDCON locking, M23, No. of pole: 12, Direction of rotation: Standard, type of contact: Pin, Solder connection, cable diameter range: 3 mm - 14.5 mm.

Features

  • Shielded
  • Connector for flexible on-site assembly
  • Consistent EMC protection for reliable transmission of signals
  • Solder connection: proven connection technology for various litz wires
  • Circular connector
Technical specifications
contact surface gold-plated
Contact connection solder connection
Pin number 12 pole
Orientation straight
Degree of protection (IP) IP67
Version plug
Type of locking SPEEDCON locking
Coding N
Assembly cable assembly
Thread size M23
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
