1619583 | Phoenix Contact

Jack, M23, 17 pole, crimp connection, SPEEDCON locking, straight, 1619583

Order No.: 62P0497
EAN: 4046356822916
MPN:
1619583
CA-17S1N8A80DNS
Series: CA
1619583 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
27.7032 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
27.70 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
27.7032 €

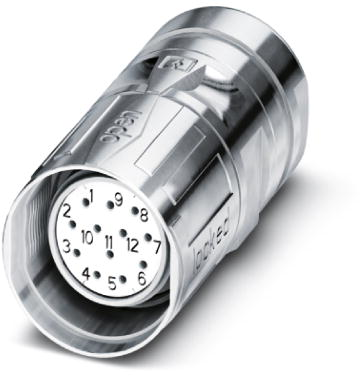

Sensor-actuator connector, 1619583, Phoenix Contact

Cable connector, CA, straight, SPEEDCON locking, M23, No. of pole: 17, Direction of rotation: Standard, type of contact: Socket, Crimp connection, cable diameter range: 3 mm - 14.5 mm.

Features

  • Shielded
  • Connector for flexible on-site assembly
  • Consistent EMC protection for reliable transmission of signals
  • Crimping connection: vibration- and temperature-resistant assembly
  • Circular connector
Technical specifications
Filter Property Value
Contact connection crimp connection
Thread size M23
Assembly cable assembly
Degree of protection (IP) IP67
Coding N
Type of locking SPEEDCON locking
Orientation straight
Product type jack
Pin number 17 pole
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
Substance description Lead
