1619531 | Phoenix Contact
Plug, M23, 6 pole, crimp connection, SPEEDCON locking, straight, 1619531
Unit Price (€ / pc.)
27.7032 € *
Standard delivery time from the manufacturer is: 2 Weeks

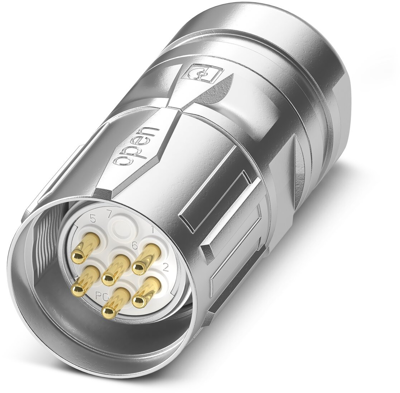

Sensor-actuator connector, 1619531, Phoenix Contact
Cable connector, CA, straight, SPEEDCON locking, M23, No. of pole: 6, Direction of rotation: Standard, type of contact: Pin, Crimp connection, cable diameter range: 6 mm - 10 mm.
Features
- Shielded
- Connector for flexible on-site assembly
- Consistent EMC protection for reliable transmission of signals
- Crimping connection: vibration- and temperature-resistant assembly
- Circular connector
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Contact connection | crimp connection | |
| Coding | N | |
| Type of locking | SPEEDCON locking | |
| Thread size | M23 | |
| Assembly | cable assembly | |
| Pin number | 6 pole | |
| Degree of protection (IP) | IP67 | |
| Product type | plug |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
