1619521 | Phoenix Contact
Plug, M23, 12 pole, solder connection, SPEEDCON locking, straight, 1619521
Unit Price (€ / pc.)
36.1046 € *
Available: 0 pcs.
Leadtime: 4 Weeks **

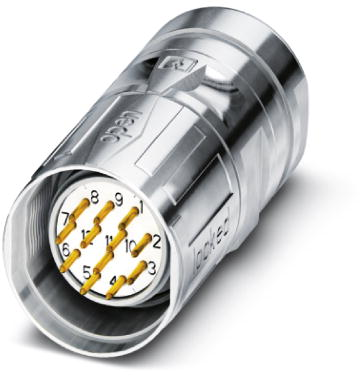

Sensor-actuator connector, 1619521, Phoenix Contact
Cable connector, CA, straight, SPEEDCON locking, M23, No. of pole: 12, Direction of rotation: Standard, type of contact: Pin, Solder connection, cable diameter range: 6 mm - 10 mm.
Features
- Shielded
- Connector for flexible on-site assembly
- Consistent EMC protection for reliable transmission of signals
- Solder connection: proven connection technology for various litz wires
- Circular connector
Technical specifications
| Version | Stecker | |
| Thread size | M23 | |
| Coding | N | |
| Contact connection | Lötanschluss | |
| contact surface | vergoldet | |
| Assembly | Kabelmontage | |
| Orientation | gerade | |
| Pin number | 12-polig | |
| Degree of protection (IP) | IP67 | |
| Type of locking | SPEEDCON-Verriegelung |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
