1619445 | Phoenix Contact

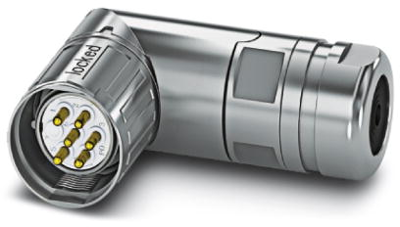

Plug, M23, 7 pole, solder connection, SPEEDCON locking, angled, 1619445
Unit Price (€ / pc.)
82.5622 € *
Standard delivery time from the manufacturer is: 4 Weeks
Plug, 1619445, Phoenix Contact
Cable connector, CA, angled, SPEEDCON locking, M23, No. of pole: 7, Direction of rotation: Standard, type of contact: Pin, Solder connection, cable diameter range: 3 mm - 14.5 mm.
Features
- Safe use in the field, thanks to high degree of protection
- Consistent EMC protection for reliable transmission of signals
- Fast locking system
- N-coded
- Contact material: CuZn
Applications
- For signal applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 7 pole | |
| Type of locking | SPEEDCON locking | |
| Contact connection | solder connection | |
| Product type | plug | |
| Coding | N | |
| Assembly | cable assembly | |
| Orientation | angled | |
| Degree of protection (IP) | IP67 | |
| Thread size | M23 | |
| contact surface | gold-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
