1619388 | Phoenix Contact

Socket, M23, 9 pole, crimp connection, SPEEDCON locking, angled, 1619388

Order No.: 62P0107
EAN: 4046356824590
MPN:
1619388
CA-09S1N8AT007S
Series: CA

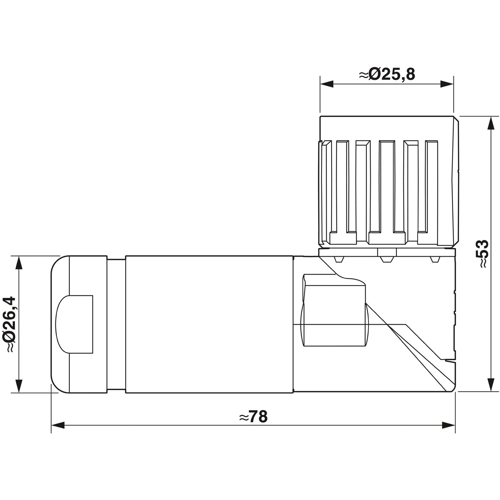

1619388 Phoenix Contact Sensor-Actuator Connectors Image 1
1619388 Phoenix Contact Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
76.9573 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
76.96 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
76.9573 €

Sensor-actuator connector, 1619388, Phoenix Contact

Cable connector, CA, angled, SPEEDCON locking, M23, No. of pole: 8+1, Direction of rotation: Standard, type of contact: Socket, Crimp connection, cable diameter range: 6 mm - 10 mm.

Features

  • Shielded
  • Angled cable outlet for confined spaces
  • Can be adapted to various applications, thanks to adjustable cable outlet direction
  • Connector for flexible on-site assembly
  • Consistent EMC protection for reliable transmission of signals
  • Crimping connection: vibration- and temperature-resistant assembly
  • Circular connector
Technical specifications
Type of locking SPEEDCON locking
Coding N
Degree of protection (IP) IP67
Assembly cable assembly
Contact connection crimp connection
Pin number 9 pole
Version socket
Orientation angled
Thread size M23
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
