1619342 | Phoenix Contact

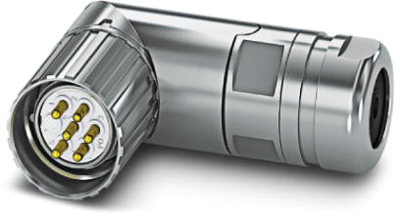

Plug, M23, 6 pole, solder connection, screw locking, angled, 1619342
Order No.: 61P9817
EAN: 4046356825023
MPN:
1619342
CA-06P1N12T0DN
Unit Price (€ / pc.)
65.0097 € *
Available: 1 pcs.
Leadtime: 16 Weeks **
Total Price:
65.01 € *
Price list
Quantity
Price per unit*
1 pcs.
65.0097 €
5 pcs.
61.1065 €
15 pcs.
58.7622 €
50 pcs.
56.1680 €
150 pcs.
53.8237 €
*incl. VAT plus shipping costs
**Subject to prior sale
Sensor-actuator connector, 1619342, Phoenix Contact
Cable connector, CA, angled, Screw locking, M23, No. of pole: 6, Direction of rotation: Standard, type of contact: Pin, Solder connection, cable diameter range: 3 mm - 14.5 mm.
Features
- Shielded
- Angled cable outlet for confined spaces
- Can be adapted to various applications, thanks to adjustable cable outlet direction
- Connector for flexible on-site assembly
- Consistent EMC protection for reliable transmission of signals
- Solder connection: proven connection technology for various litz wires
- Circular connector
Technical specifications
| Version | plug | |
| Thread size | M23 | |
| Coding | N | |
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Orientation | angled | |
| Pin number | 6 pole | |
| Degree of protection (IP) | IP67 | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
