1619340 | Phoenix Contact

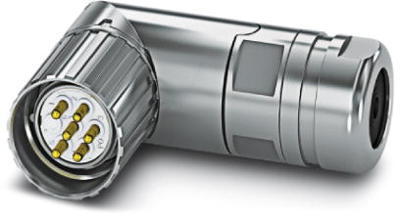

Plug, M23, 6 pole, crimp connection, screw locking, angled, 1619340
Unit Price (€ / pc.)
77.8022 € *
Standard delivery time from the manufacturer is: On Request
Sensor-actuator connector, 1619340, Phoenix Contact
Cable connector, CA, angled, Screw locking, M23, No. of pole: 6, Direction of rotation: Standard, type of contact: Pin, Crimp connection, cable diameter range: 3 mm - 14.5 mm.
Features
- Shielded
- Connector for flexible on-site assembly
- Consistent EMC protection for reliable transmission of signals
- Solder connection: proven connection technology for various litz wires
- Circular connector
Technical specifications
| Pin number | 6 pole | |
| Type of locking | screw locking | |
| Contact connection | crimp connection | |
| Product type | plug | |
| Coding | N | |
| Assembly | cable assembly | |
| Orientation | angled | |
| Degree of protection (IP) | IP67 | |
| Thread size | M23 |
Download
Logistics
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
