1619017 | Phoenix Contact

Jack, M17, 8 pole, crimp connection, SPEEDCON locking, straight, 1619017

Order No.: 62P4459
EAN: 4046356814126
MPN:
1619017
ST-08S1N8A9005S
Series: ST

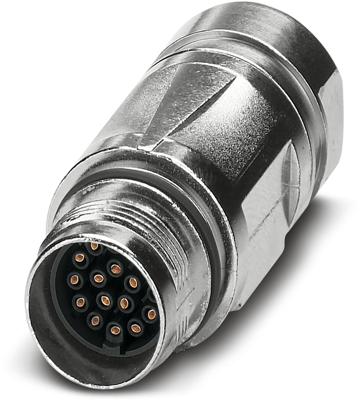

1619017 Phoenix Contact Sensor-Actuator Connectors Image 1
1619017 Phoenix Contact Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
31.7016 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
31.70 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
31.7016 €

Coupler connector, 1619017, Phoenix Contact

Coupler connector, straight, for standard and SPEEDCON interlock, M17, number of positions: 8, cable diameter range: 10 mm - 12.5 mm, number of positions: 8, connection method: Crimp connection.

Features

  • Shielded
  • Consistent EMC protection for reliable connection solutions in the industrial environment
  • N-coded
  • Overvoltage category: II
  • Degree of protection: IP67
  • Seal material: FPM

Applications

  • For signal applications
Technical specifications
Pin number 8 pole
Type of locking SPEEDCON locking
Contact connection crimp connection
Product type jack
Coding N
Assembly cable assembly
Orientation straight
Degree of protection (IP) IP67
Thread size M17
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
Substance description Lead
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
