1619004 | Phoenix Contact

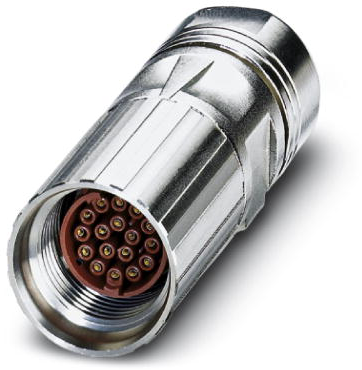

Jack, M17, 8 pole, crimp connection, screw locking, straight, 1619004

Order No.: 62P4449
EAN: 4046356813907
MPN:
1619004
ST-08S1N8A8004
Series: ST
1619004 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
26.8702 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
26.87 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
26.8702 €

Sensor-actuator connector, 1619004, Phoenix Contact

Cable connector, straight, Screw locking, M17, number of positions: 8, type of contact: Socket, cable diameter range: 8 mm - 10 mm, number of positions: 8, connection method: Crimp connection.

Features

  • Shielded
  • Consistent EMC protection for reliable connection solutions in the industrial environment
  • N-coded
  • Overvoltage category: II
  • Degree of protection: IP67
  • Seal material: FPM

Applications

  • For signal applications
Technical specifications
Filter Property Value
Contact connection crimp connection
Orientation straight
Coding N
Assembly cable assembly
Degree of protection (IP) IP67
Product type jack
Thread size M17
Type of locking screw locking
Pin number 8 pole
Logistics
Property Value
Customs tariff number 85444290
Country of origin DE
Compliance
Property Value
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
Substance description Lead
