1618710 | Phoenix Contact

Jack, M17, 7 pole, crimp connection, SPEEDCON locking, straight, 1618710

Order No.: 62P4688
EAN: 4046356809702
MPN:
1618710
ST-6ES1N8A9K04S
Series: ST
1618710 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
31.0709 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
31.07 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
31.0709 €

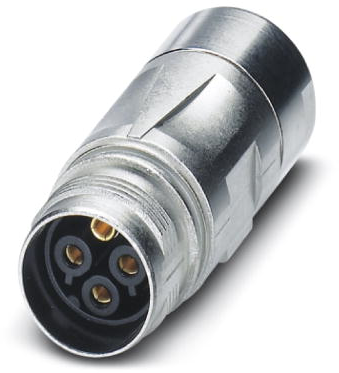

Coupler connector, 1618710, Phoenix Contact

Coupler connector, straight, for standard and SPEEDCON interlock, M17, number of positions: 6+PE, type of contact: Socket, cable diameter range: 9 mm - 11.2 mm, number of positions: 7, connection method: Crimp connection.

Features

  • Shielded
  • Consistent EMC protection for reliable connection solutions in the industrial environment
  • N-coded
  • Overvoltage category: III
  • Degree of protection: IP67
  • Seal material: FPM

Applications

  • For power applications
Technical specifications
Coding N
Type of locking SPEEDCON locking
Thread size M17
Degree of protection (IP) IP67
Orientation straight
Pin number 7 pole
Assembly cable assembly
Contact connection crimp connection
Product type jack
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description Lead
