1618695 | Phoenix Contact

Jack, M17, 4 pole, crimp connection, SPEEDCON locking, straight, 1618695

Order No.: 62P4577
EAN: 4046356809740
MPN:
1618695
ST-3ES1N8A9K02S
Series: ST
1618695 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
31.0709 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
31.07 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
31.0709 €

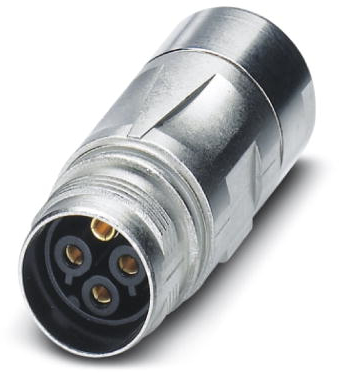

Coupler connector, 1618695, Phoenix Contact

Coupler connector, straight, for standard and SPEEDCON interlock, M17, number of positions: 3+PE, type of contact: Socket, cable diameter range: 3.5 mm - 5.5 mm, number of positions: 4, connection method: Crimp connection.

Features

  • Shielded
  • Consistent EMC protection for reliable connection solutions in the industrial environment
  • N-coded
  • Overvoltage category: III
  • Degree of protection: IP67
  • Seal material: FPM

Applications

  • For power applications
Technical specifications
Filter Property Value
Contact connection crimp connection
Orientation straight
Coding N
Assembly cable assembly
Degree of protection (IP) IP67
Product type jack
Thread size M17
Type of locking SPEEDCON locking
Pin number 4 pole
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
Substance description Lead
