1618676 | Phoenix Contact

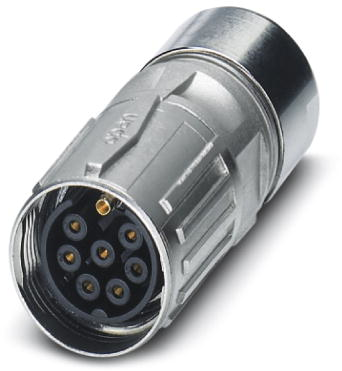

Jack, M17, 9 pole, crimp connection, SPEEDCON locking, straight, 1618676

Order No.: 62P4789
EAN: 4046356792141
MPN:
1618676
ST-8ES1N8A8K04S
Series: ST
1618676 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
29.7857 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
29.79 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
29.7857 €

Sensor-actuator connector, 1618676, Phoenix Contact

Cable connector, straight, SPEEDCON locking, M17, number of positions: 5+3+PE, type of contact: Socket, flange dimensions: 25.75 mm x 25.75 mm, cable diameter range: 9 mm - 11.2 mm, number of positions: 9, connection method: Crimp connection.

Features

  • Shielded
  • Consistent EMC protection for reliable connection solutions in the industrial environment
  • N-coded
  • Overvoltage category: III
  • Degree of protection: IP67
  • Seal material: FPM

Applications

  • For power applications
Technical specifications
Filter Property Value
Pin number 9 pole
Thread size M17
Coding N
Assembly cable assembly
Degree of protection (IP) IP67
Product type jack
Type of locking SPEEDCON locking
Orientation straight
Contact connection crimp connection
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
