1618649 | Phoenix Contact

Plug, M17, 8 pole, crimp connection, SPEEDCON locking, straight, 1618649

Order No.: 62P4429
EAN: 4046356792509
MPN:
1618649
ST-08P1N8A8K04S
Series: ST
1618649 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
29.7857 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
29.79 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
29.7857 €

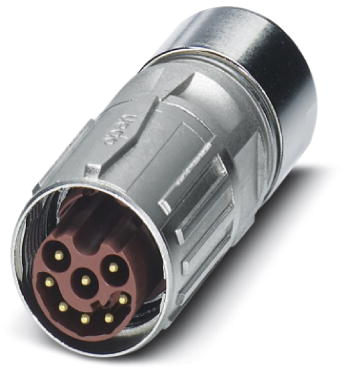

Sensor-actuator connector, 1618649, Phoenix Contact

Cable connector, straight, SPEEDCON locking, M17, number of positions: 8, type of contact: Pin, cable diameter range: 9 mm - 11.2 mm, number of positions: 8, connection method: Crimp connection.

Features

  • Shielded
  • Consistent EMC protection for reliable connection solutions in the industrial environment
  • N-coded
  • Overvoltage category: III
  • Degree of protection: IP67
  • Seal material: FPM

Applications

  • For signal applications
Technical specifications
Filter Property Value
Coding N
Product type plug
Contact connection crimp connection
Degree of protection (IP) IP67
Orientation straight
Pin number 8 pole
Type of locking SPEEDCON locking
Thread size M17
Assembly cable assembly
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
Substance description Lead
Date of RoHS guidelines 3/31/15
SVHC free No
