1618648 | Phoenix Contact

Plug, M17, 8 pole, crimp connection, SPEEDCON locking, straight, 1618648

Order No.: 62P4428
EAN: 4046356792424
MPN:
1618648
ST-08P1N8A8K03S
Series: ST

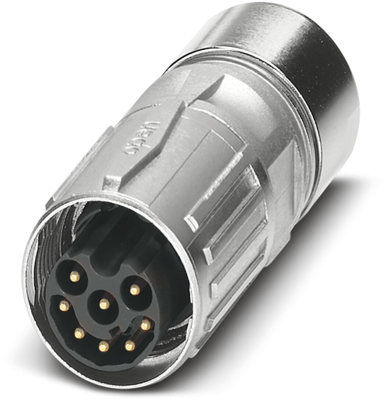

1618648 Phoenix Contact Sensor-Actuator Connectors Image 1
1618648 Phoenix Contact Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
29.7857 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
29.79 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
29.7857 €

Sensor-actuator connector, 1618648, Phoenix Contact

Cable connector, straight, SPEEDCON locking, M17, number of positions: 8, type of contact: Pin, cable diameter range: 5 mm - 9.2 mm, number of positions: 8, connection method: Crimp connection.

Features

  • Shielded
  • Consistent EMC protection for reliable connection solutions in the industrial environment
  • N-coded
  • Overvoltage category: III
  • Degree of protection: IP67
  • Seal material: FPM

Applications

  • For signal applications
Technical specifications
Filter Property Value
Type of locking SPEEDCON locking
Coding N
Product type plug
Contact connection crimp connection
Assembly cable assembly
Degree of protection (IP) IP67
Orientation straight
Thread size M17
Pin number 8 pole
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Lead
RoHS conform Yes
SVHC free No
