1618603 | Phoenix Contact

Jack, M17, 4 pole, crimp connection, SPEEDCON locking, straight, 1618603

Order No.: 62P4573
EAN: 4046356791663
MPN:
1618603
ST-3ES1N8A8K04S
Series: ST
1618603 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
29.7857 € *
Available in 5 Days: 20 pcs. - if ordered today
Total Price:
29.79 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
29.7857 €

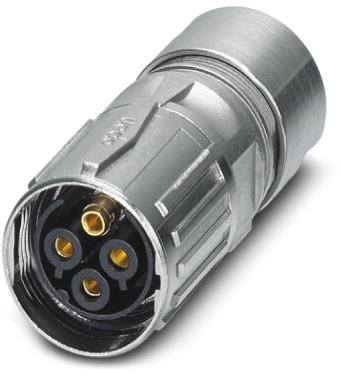

Sensor-actuator connector, 1618603, Phoenix Contact

Cable connector, straight, SPEEDCON locking, M17, number of positions: 3+PE, type of contact: Socket, cable diameter range: 9 mm - 11.2 mm, number of positions: 4, connection method: Crimp connection.

Features

  • Shielded
  • Consistent EMC protection for reliable connection solutions in the industrial environment
  • N-coded
  • Overvoltage category: III
  • Degree of protection: IP67
  • Seal material: FPM

Applications

  • For power applications
Technical specifications
Filter Property Value
Pin number 4 pole
Orientation straight
Contact connection crimp connection
Assembly cable assembly
Product type jack
Coding N
Degree of protection (IP) IP67
Type of locking SPEEDCON locking
Thread size M17
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
