1618406 | Phoenix Contact

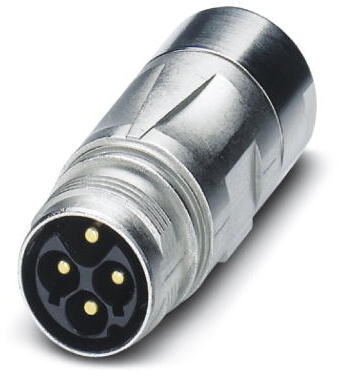

Plug, M17, 4 pole, crimp connection, SPEEDCON locking, straight, 1618406

Order No.: 62P4551
EAN: 4046356816694
MPN:
1618406
ST-3EP1N8A9K03S
Series: ST
1618406 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
31.0709 € *
Available in 5 Days: 148 pcs. - if ordered today
Total Price:
31.07 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
31.0709 €

Coupler connector, 1618406, Phoenix Contact

Coupler connector, straight, for standard and SPEEDCON interlock, M17, number of positions: 3+PE, type of contact: Pin, cable diameter range: 5 mm - 9.2 mm, number of positions: 4, connection method: Crimp connection.

Features

  • Shielded
  • Consistent EMC protection for reliable connection solutions in the industrial environment
  • N-coded
  • Overvoltage category: III
  • Degree of protection: IP67
  • Seal material: FPM

Applications

  • For power applications
Technical specifications
Filter Property Value
Coding N
Pin number 4 pole
Assembly cable assembly
Orientation straight
Degree of protection (IP) IP67
Contact connection crimp connection
Type of locking SPEEDCON locking
Product type plug
Thread size M17
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
Substance description Lead
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
