1618207 | Phoenix Contact

Jack, M23, 8 pole, crimp connection, SPEEDCON locking, straight, 1618207

Order No.: 62P4168
EAN: 4046356584555
MPN:
1618207
SF-7ES1N8A80DUS
Series: SF
1618207 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
42.0784 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
42.08 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
42.0784 €

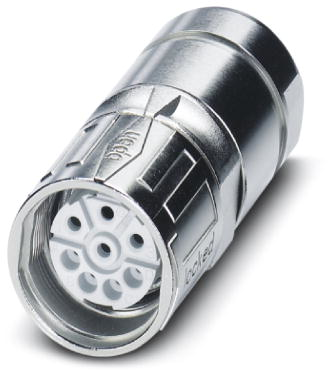

Sensor-actuator connector, 1618207, Phoenix Contact

Cable connector, straight short, SPEEDCON locking, M23, number of positions: 4+3+PE, type of contact: Socket, cable diameter range: 7.5 mm - 14 mm, number of positions: 8, connection method: Crimp connection.

Features

  • Shielded
  • Consistent EMC protection for reliable connection solutions in the industrial environment
  • N-coded
  • Overvoltage category: III
  • Degree of protection: IP67
  • Seal material: FPM

Applications

  • For power applications
Technical specifications
Filter Property Value
Coding N
Type of locking SPEEDCON locking
Thread size M23
Degree of protection (IP) IP67
Orientation straight
Pin number 8 pole
Assembly cable assembly
Contact connection crimp connection
Product type jack
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description Lead
