1618199 | Phoenix Contact

Jack, M23, 6 pole, crimp connection, SPEEDCON locking, straight, 1618199

Order No.: 62P4113
EAN: 4046356584388
MPN:
1618199
SF-5ES1N8A8LB2S
Series: SF
1618199 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
43.0542 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
43.05 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
43.0542 €

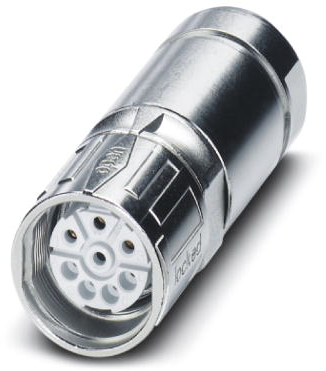

Sensor-actuator connector, 1618199, Phoenix Contact

Cable connector, SPEEDCON locking, M23, number of positions: 5+PE, type of contact: Socket, cable diameter range: 12 mm - 15 mm, number of positions: 6, connection method: Crimp connection.

Features

  • Shielded
  • Consistent EMC protection for reliable connection solutions in the industrial environment
  • N-coded
  • Overvoltage category: III
  • Degree of protection: IP67
  • Seal material: FPM

Applications

  • For power applications
Technical specifications
Filter Property Value
Type of locking SPEEDCON locking
Thread size M23
Coding N
Assembly cable assembly
Pin number 6 pole
Orientation straight
Product type jack
Degree of protection (IP) IP67
Contact connection crimp connection
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Lead
RoHS conform Yes
SVHC free No
