1618197 | Phoenix Contact

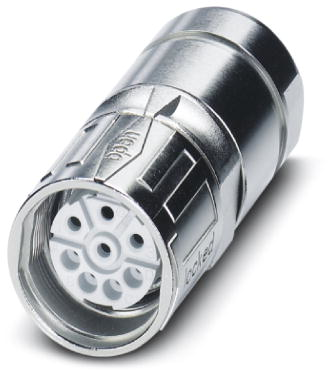

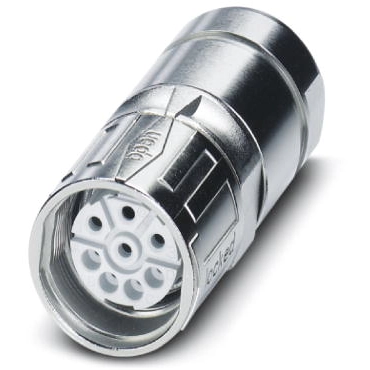

Socket, M23, 6 pole, crimp connection, SPEEDCON locking, straight, 1618197

Order No.: 62P4109
EAN: 4046356584456
MPN:
1618197
SF-5ES1N8A80DUS
Series: SF
1618197 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
40.7694 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
40.77 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
40.7694 €

Sensor-actuator connector, 1618197, Phoenix Contact

Cable connector, straight short, SPEEDCON locking, M23, number of positions: 5+PE, type of contact: Socket, cable diameter range: 7.5 mm - 14 mm, number of positions: 6, connection method: Crimp connection.

Features

  • Shielded
  • Consistent EMC protection for reliable connection solutions in the industrial environment
  • N-coded
  • Overvoltage category: III
  • Degree of protection: IP67
  • Seal material: FPM

Applications

  • For power applications
Technical specifications
Pin number 6 pole
Type of locking SPEEDCON locking
Contact connection crimp connection
Product type socket
Coding N
Assembly cable assembly
Orientation straight
Degree of protection (IP) IP67
Thread size M23
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
Substance description Lead
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
