1618195 | Phoenix Contact

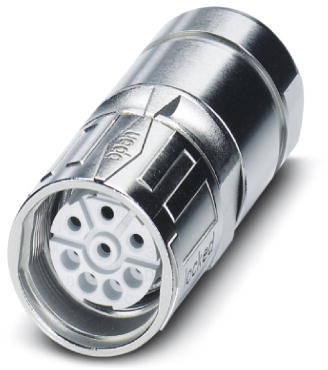

Jack, M23, 6 pole, crimp connection, SPEEDCON locking, straight, 1618195

Order No.: 62P4103
EAN: 4046356584432
MPN:
1618195
SF-5ES1N8A80A2S
Series: SF
1618195 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
40.4005 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
40.40 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
40.4005 €

Sensor-actuator connector, 1618195, Phoenix Contact

Cable connector, straight short, SPEEDCON locking, M23, number of positions: 5+PE, type of contact: Socket, cable diameter range: 9 mm - 11 mm, number of positions: 6, connection method: Crimp connection.

Features

  • Shielded
  • Consistent EMC protection for reliable connection solutions in the industrial environment
  • N-coded
  • Overvoltage category: III
  • Degree of protection: IP67
  • Seal material: FPM

Applications

  • For power applications
Technical specifications
Coding N
Type of locking SPEEDCON locking
Thread size M23
Degree of protection (IP) IP67
Orientation straight
Pin number 6 pole
Assembly cable assembly
Contact connection crimp connection
Product type jack
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description Lead
