1614067 | Phoenix Contact

Plug, M23, 12 pole, crimp connection, screw locking, straight, 1614067

Order No.: 62P3864
EAN: 4046356442435
MPN:
1614067
RF-12P1N8A8VDU
Series: RF
1614067 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
109.6704 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
2,193.41 € *
*incl. VAT plus shipping costs
Subject to prior sale
20 pcs.
109.6704 €

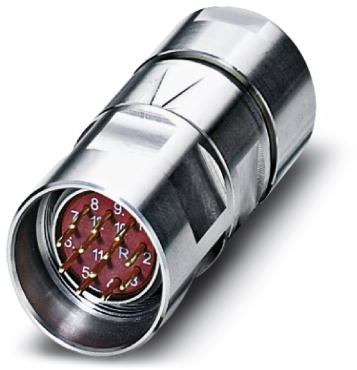

Sensor-actuator connector, 1614067, Phoenix Contact

Cable connector, straight, Screw locking, M23, number of positions: 12, type of contact: Pin, cable diameter range: 5 mm - 13.2 mm, number of positions: 12, connection method: Crimp connection.

Features

  • Shielded
  • Housing material: High-grade steel 1.4305
  • N-coded
  • Overvoltage category: III

Applications

  • For feedback and signal applications
Technical specifications
Pin number 12 pole
Type of locking screw locking
Contact connection crimp connection
Product type plug
Coding N
Assembly cable assembly
Orientation straight
Degree of protection (IP) IP67
Thread size M23
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
Substance description Lead
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
