1613966 | Phoenix Contact

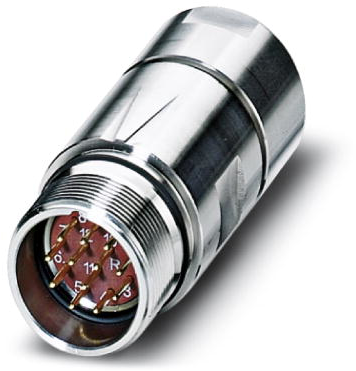

Plug, M23, 12 pole, crimp connection, screw locking, straight, 1613966

Order No.: 62P3873
EAN: 4046356442602
MPN:
1613966
RF-12P2N8A9VDU
Series: RF
1613966 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
95.20 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
1,904.00 € *
*incl. VAT plus shipping costs
Subject to prior sale
20 pcs.
95.20 €

Sensor-actuator connector, 1613966, Phoenix Contact

Coupler connector, straight, Screw locking, M23, number of positions: 12, type of contact: Pin, cable diameter range: 5 mm - 13.2 mm, number of positions: 12, connection method: Crimp connection.

Features

  • Shielded
  • Housing material: High-grade steel 1.4305
  • N-coded
  • Overvoltage category: III

Applications

  • For feedback and signal applications
Technical specifications
Pin number 12 pole
Type of locking screw locking
Contact connection crimp connection
Product type plug
Coding N
Assembly cable assembly
Orientation straight
Degree of protection (IP) IP67
Thread size M23
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
Substance description Lead
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
