1613519 | Phoenix Contact

Jack, M40, 6 pole, crimp connection, screw locking, straight, 1613519

Order No.: 62P4368
EAN: 4046356400800
MPN:
1613519
SM-5ES1N8A8S23
Series: SM
1613519 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
102.6137 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
102.61 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
102.6137 €

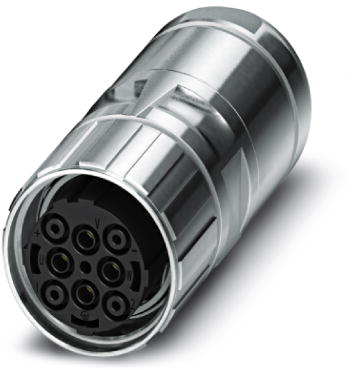

Sensor-actuator connector, 1613519, Phoenix Contact

Cable connector, straight long, Screw locking, M40, number of positions: 2+3+PE, type of contact: Socket, cable diameter range: 14 mm - 20.5 mm, number of positions: 6, connection method: Crimp connection.

Features

  • Consistent EMC protection for reliable connection solutions in the industrial environment
  • Shielded
  • N-coded
  • Overvoltage category: III
  • Degree of protection: IP67
  • Seal material: FPM

Applications

  • For power applications
Technical specifications
Filter Property Value
Contact connection crimp connection
Thread size M40
Assembly cable assembly
Degree of protection (IP) IP67
Type of locking screw locking
Orientation straight
Product type jack
Pin number 6 pole
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
Substance description Lead
