1613518 | Phoenix Contact

Jack, M40, 6 pole, crimp connection, screw locking, straight, 1613518

Order No.: 62P4367
EAN: 4046356400794
MPN:
1613518
SM-5ES1N8A8S22
Series: SM
1613518 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
102.6137 € *
Available in 5 Days: 46 pcs. - if ordered today
Total Price:
102.61 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
102.6137 €

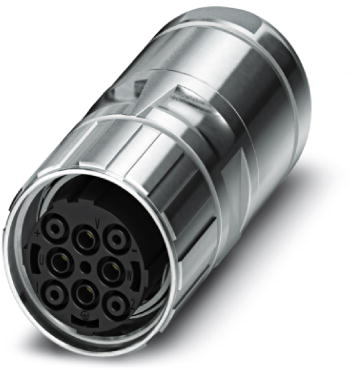

Sensor-actuator connector, 1613518, Phoenix Contact

Cable connector, straight long, Screw locking, M40, number of positions: 2+3+PE, type of contact: Socket, cable diameter range: 9 mm - 14 mm, number of positions: 6, connection method: Crimp connection.

Features

  • Consistent EMC protection for reliable connection solutions in the industrial environment
  • Shielded
  • N-coded
  • Overvoltage category: III
  • Degree of protection: IP67
  • Seal material: FPM

Applications

  • For power applications
Technical specifications
Filter Property Value
Coding N
Degree of protection (IP) IP67
Contact connection crimp connection
Orientation straight
Assembly cable assembly
Type of locking screw locking
Pin number 6 pole
Product type jack
Thread size M40
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
Substance description Lead
