1613452 | Phoenix Contact

Jack, M17, 8 pole, crimp connection, SPEEDCON locking, straight, 1613452

Order No.: 62P4456
EAN: 4046356708678
MPN:
1613452
ST-08S1N8A8K05S
Series: ST

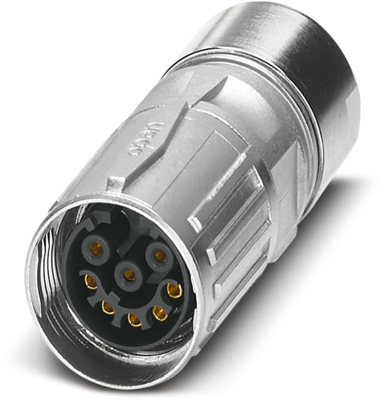

1613452 Phoenix Contact Sensor-Actuator Connectors Image 1

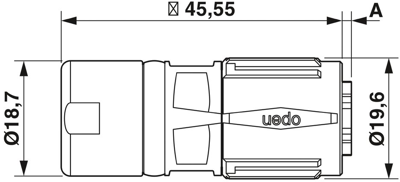

1613452 Phoenix Contact Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
21.3129 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
21.31 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
21.3129 €

Sensor-actuator connector, 1613452, Phoenix Contact

Cable connector, straight, SPEEDCON locking, M17, number of positions: 8, type of contact: Socket, cable diameter range: 11 mm - 12.7 mm, number of positions: 8, connection method: Crimp connection.

Features

  • Shielded
  • Consistent EMC protection for reliable connection solutions in the industrial environment
  • N-coded
  • Overvoltage category: II
  • Degree of protection: IP67
  • Seal material: FPM

Applications

  • For signal applications
Technical specifications
Filter Property Value
Coding N
Type of locking SPEEDCON locking
Thread size M17
Degree of protection (IP) IP67
Orientation straight
Pin number 8 pole
Assembly cable assembly
Contact connection crimp connection
Product type jack
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description Lead
