1613434 | Phoenix Contact

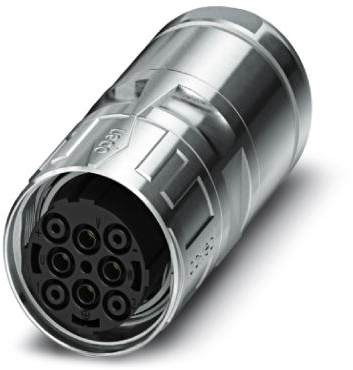

Jack, M40, 8 pole, crimp connection, SPEEDCON locking, straight, 1613434

Order No.: 62P4396
EAN: 4046356400268
MPN:
1613434
SM-7ES1N8A8L32S
Series: SM
1613434 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
110.5867 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
110.59 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
110.5867 €

Sensor-actuator connector, 1613434, Phoenix Contact

Cable connector, straight, SPEEDCON locking, M40, number of positions: 4+3+PE, type of contact: Socket, cable diameter range: 9 mm - 14 mm, number of positions: 8, connection method: Crimp connection.

Features

  • Shielded
  • Consistent EMC protection for reliable connection solutions in the industrial environment
  • N-coded
  • Overvoltage category: III
  • Degree of protection: IP67
  • Seal material: FPM

Applications

  • For power applications
Technical specifications
Coding N
Type of locking SPEEDCON locking
Thread size M40
Degree of protection (IP) IP67
Orientation straight
Pin number 8 pole
Assembly cable assembly
Contact connection crimp connection
Product type jack
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description Lead
