1613431 | Phoenix Contact
Plug, M40, 8 pole, crimp connection, SPEEDCON locking, straight, 1613431
Order No.: 62P4378
EAN: 4046356400237
MPN:
1613431
SM-7EP1N8A9L32S
Unit Price (€ / pc.)
150.3208 € *
Available: 0 pcs.
Leadtime: On Request **

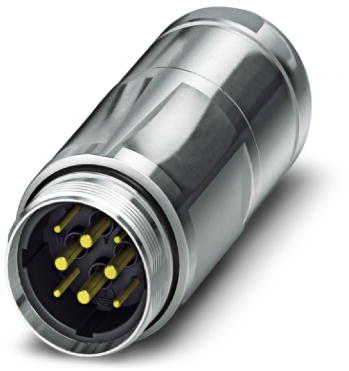

Coupler connector, 1613431, Phoenix Contact
Coupler connector, straight, for standard and SPEEDCON interlock, M40, number of positions: 4+3+PE, type of contact: Pin, cable diameter range: 9 mm - 14 mm, number of positions: 8, connection method: Crimp connection.
Features
- Shielded
- Consistent EMC protection for reliable connection solutions in the industrial environment
- N-coded
- Overvoltage category: III
- Degree of protection: IP67
- Seal material: FPM
Applications
- For power applications
Technical specifications
| Version | plug | |
| Thread size | M40 | |
| Coding | N | |
| Contact connection | crimp connection | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 8 pole | |
| Degree of protection (IP) | IP67 | |
| Type of locking | SPEEDCON locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
