1613429 | Phoenix Contact

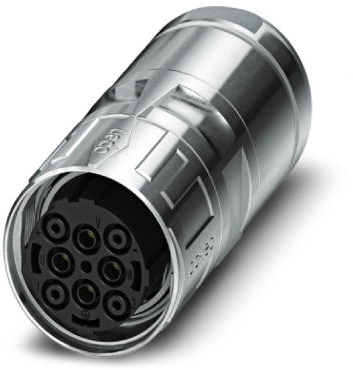

Jack, M40, 6 pole, crimp connection, SPEEDCON locking, straight, 1613429

Order No.: 62P4365
EAN: 4046356400213
MPN:
1613429
SM-5ES1N8A8L33S
Series: SM
1613429 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
109.123 € *
Available in 10 days: 43 pcs. - if ordered today
Total Price:
109.12 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
109.123 €

Sensor-actuator connector, 1613429, Phoenix Contact

Cable connector, straight, SPEEDCON locking, M40, number of positions: 2+3+PE, type of contact: Socket, cable diameter range: 14 mm - 20.5 mm, number of positions: 6, connection method: Crimp connection.

Features

  • Consistent EMC protection for reliable connection solutions in the industrial environment
  • Shielded
  • N-coded
  • Overvoltage category: III
  • Degree of protection: IP67
  • Seal material: FPM

Applications

  • For power applications
Technical specifications
Filter Property Value
Orientation straight
Assembly cable assembly
Pin number 6 pole
Contact connection crimp connection
Product type jack
Degree of protection (IP) IP67
Type of locking SPEEDCON locking
Coding N
Thread size M40
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description Lead
RoHS conform Yes
