1613426 | Phoenix Contact

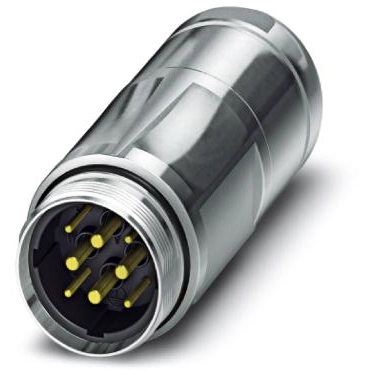

Plug, M40, 6 pole, crimp connection, SPEEDCON locking, straight, 1613426

Order No.: 62P4348
EAN: 4046356400183
MPN:
1613426
SM-5EP1N8A9L33S
Series: SM
1613426 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
148.9761 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
148.98 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
148.9761 €

Coupler connector, 1613426, Phoenix Contact

Coupler connector, straight, for standard and SPEEDCON interlock, M40, number of positions: 2+3+PE, type of contact: Pin, cable diameter range: 14 mm - 20.5 mm, number of positions: 6, connection method: Crimp connection.

Features

  • Consistent EMC protection for reliable connection solutions in the industrial environment
  • N-coded
  • Overvoltage category: III
  • Degree of protection: IP67
  • Seal material: FPM

Applications

  • For power applications
Technical specifications
Filter Property Value
Contact connection crimp connection
Orientation straight
Coding N
Assembly cable assembly
Degree of protection (IP) IP67
Product type plug
Thread size M40
Type of locking SPEEDCON locking
Pin number 6 pole
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
Substance description Lead
