1613288 | Phoenix Contact

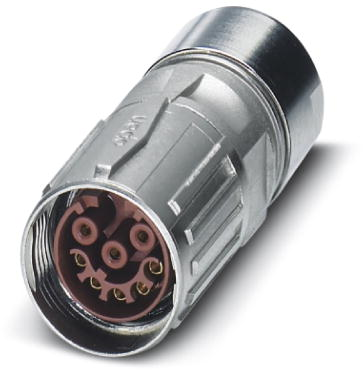

Jack, M17, 17 pole, crimp connection, SPEEDCON locking, straight, 1613288

Order No.: 62P4512
EAN: 4046356708562
MPN:
1613288
ST-17S1N8A8K02S
Series: ST
1613288 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
29.7857 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
29.79 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
29.7857 €

Sensor-actuator connector, 1613288, Phoenix Contact

Cable connector, straight, SPEEDCON locking, M17, number of positions: 17, type of contact: Socket, cable diameter range: 3.5 mm - 5.5 mm, number of positions: 17, connection method: Crimp connection.

Features

  • Shielded
  • Consistent EMC protection for reliable connection solutions in the industrial environment
  • N-coded
  • Overvoltage category: III
  • Degree of protection: IP67
  • Seal material: FPM

Applications

  • For signal applications
Technical specifications
Filter Property Value
Contact connection crimp connection
Orientation straight
Coding N
Assembly cable assembly
Degree of protection (IP) IP67
Product type jack
Thread size M17
Type of locking SPEEDCON locking
Pin number 17 pole
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
Substance description Lead
