1607718 | Phoenix Contact

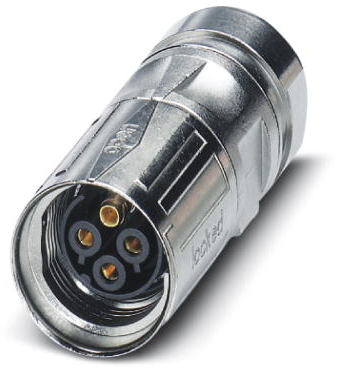

Jack, M17, 6 pole, crimp connection, SPEEDCON locking, straight, 1607718

Order No.: 62P4621
EAN: 4046356274203
MPN:
1607718
ST-5ES1N8A8003S
Series: ST
1607718 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
28.6433 € *
Available in 10 days: 1,073 pcs. - if ordered today
Total Price:
28.64 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
28.6433 €

Sensor-actuator connector, 1607718, Phoenix Contact

Cable connector, straight, SPEEDCON locking, M17, number of positions: 5+PE, type of contact: Socket, cable diameter range: 5 mm - 8 mm, number of positions: 6, connection method: Crimp connection.

Features

  • Shielded
  • Consistent EMC protection for reliable connection solutions in the industrial environment
  • N-coded
  • Overvoltage category: III
  • Degree of protection: IP67
  • Seal material: FPM

Applications

  • For power applications
Technical specifications
Filter Property Value
Assembly cable assembly
Coding N
Type of locking SPEEDCON locking
Contact connection crimp connection
Pin number 6 pole
Degree of protection (IP) IP67
Product type jack
Orientation straight
Thread size M17
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
SVHC free No
Substance description Lead
Date of RoHS guidelines 3/31/15
