1607667 | Phoenix Contact

Plug, M17, 4 pole, crimp connection, SPEEDCON locking, straight, 1607667

Order No.: 62P4541
EAN: 4046356273749
MPN:
1607667
ST-3EP1N8A8004S
Series: ST
1607667 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
28.1554 € *
Available in 10 days: 88 pcs. - if ordered today
Total Price:
28.16 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
28.1554 €

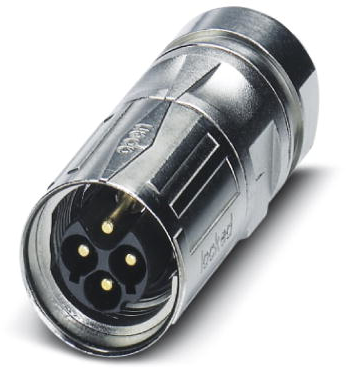

Sensor-actuator connector, 1607667, Phoenix Contact

Cable connector, straight, SPEEDCON locking, M17, number of positions: 3+PE, type of contact: Pin, cable diameter range: 8 mm - 10 mm, number of positions: 4, connection method: Crimp connection.

Features

  • Shielded
  • Consistent EMC protection for reliable connection solutions in the industrial environment
  • N-coded
  • Overvoltage category: III
  • Degree of protection: IP67
  • Seal material: FPM

Applications

  • For power applications
Technical specifications
Filter Property Value
Coding N
Degree of protection (IP) IP67
Orientation straight
Contact connection crimp connection
Thread size M17
Type of locking SPEEDCON locking
Assembly cable assembly
Pin number 4 pole
Product type plug
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
SVHC free No
Substance description Lead
RoHS conform Yes
Date of RoHS guidelines 3/31/15
