1607649 | Phoenix Contact

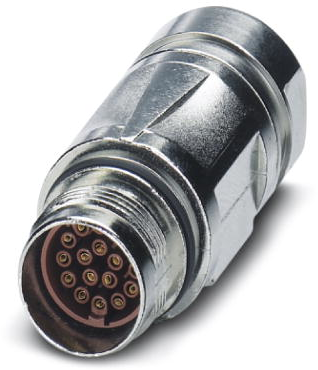

Socket, M17, 17 pole, crimp connection, SPEEDCON locking, straight, 1607649
Order No.: 62P4517
EAN: 4046356273589
MPN:
1607649
ST-17S1N8A9004S
Unit Price (€ / pc.)
31.8087 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
31.81 € *
Price list
Quantity
Price per unit*
1 pcs.
31.8087 €
10 pcs.
29.2502 €
25 pcs.
26.6084 €
50 pcs.
23.9666 €
*incl. VAT plus shipping costs
**Subject to prior sale
Coupler connector, 1607649, Phoenix Contact
Coupler connector, straight, for standard and SPEEDCON interlock, M17, number of positions: 17, type of contact: Socket, cable diameter range: 8 mm - 10 mm, number of positions: 17, connection method: Crimp connection.
Features
- Shielded
- Consistent EMC protection for reliable connection solutions in the industrial environment
- N-coded
- Overvoltage category: III
- Degree of protection: IP67
- Seal material: FPM
Applications
- For signal applications
Technical specifications
| Version | socket | |
| Thread size | M17 | |
| Coding | N | |
| Contact connection | crimp connection | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 17 pole | |
| Degree of protection (IP) | IP67 | |
| Type of locking | SPEEDCON locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
