1607624 | Phoenix Contact

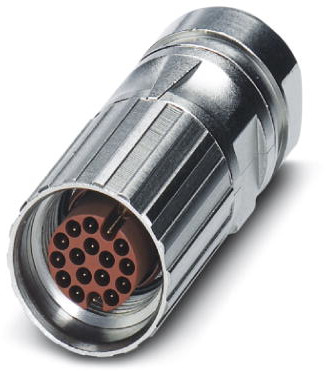

Plug, M17, 17 pole, crimp connection, screw locking, straight, 1607624

Order No.: 62P4478
EAN: 4046356273350
MPN:
1607624
ST-17P1N8A8003
Series: ST
1607624 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
27.5247 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
27.52 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
27.5247 €

Sensor-actuator connector, 1607624, Phoenix Contact

Cable connector, straight, Screw locking, M17, number of positions: 17, type of contact: Pin, cable diameter range: 5 mm - 8 mm, number of positions: 17, connection method: Crimp connection.

Features

  • Shielded
  • Consistent EMC protection for reliable connection solutions in the industrial environment
  • N-coded
  • Overvoltage category: III
  • Degree of protection: IP67
  • Seal material: FPM

Applications

  • For signal applications
Technical specifications
Pin number 17 pole
Type of locking screw locking
Contact connection crimp connection
Product type plug
Coding N
Assembly cable assembly
Orientation straight
Degree of protection (IP) IP67
Thread size M17
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
Substance description Lead
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
