1605783 | Phoenix Contact

Plug, M40, 6 pole, crimp connection, screw locking, straight, 1605783

Order No.: 62P4351
EAN: 4046356254779
MPN:
1605783
SM-5EP1N8AC003
Series: SM
1605783 Phoenix Contact Sensor-Actuator Connectors

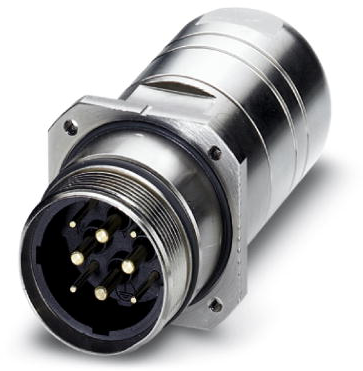

Image may differ
Unit Price (€ / pc.)
117.4887 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
704.93 € *
*incl. VAT plus shipping costs
Subject to prior sale
6 pcs.
117.4887 €

Sensor-actuator connector, 1605783, Phoenix Contact

Rear panel feed-through, straight, Screw locking, M40, number of positions: 2+3+PE, type of contact: Pin, Axial O-ring, 4xM4, cable diameter range: 12.5 mm - 17 mm, number of positions: 6, connection method: Crimp connection.

Features

  • Shielded
  • N-coded
  • Overvoltage category: III
  • Degree of protection: IP67
  • Seal material: FPM

Applications

  • For power applications
Technical specifications
Pin number 6 pole
Type of locking screw locking
Contact connection crimp connection
Product type plug
Coding N
Assembly cable assembly
Orientation straight
Degree of protection (IP) IP67
Thread size M40
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
Substance description Lead
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
