1605617 | Phoenix Contact

Jack, M23, 8 pole, crimp connection, screw locking, straight, 1605617

Order No.: 62P4177
EAN: 4046356253970
MPN:
1605617
SF-7ES1N8A8LDL
Series: SF
1605617 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
52.241 € *
Available in 10 days: 155 pcs. - if ordered today
Total Price:
52.24 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
52.241 €

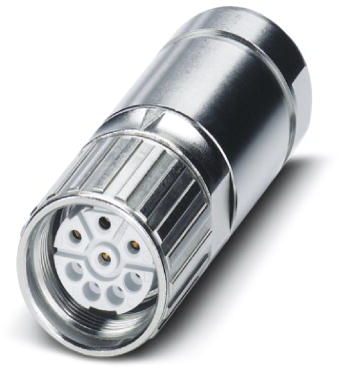

Sensor-actuator connector, 1605617, Phoenix Contact

Cable connector, straight long, Screw locking, M23, number of positions: 4+3+PE, type of contact: Socket, cable diameter range: 7.5 mm - 18 mm, number of positions: 8, connection method: Crimp connection.

Features

  • Shielded
  • Consistent EMC protection for reliable connection solutions in the industrial environment
  • N-coded
  • Overvoltage category: III
  • Degree of protection: IP67
  • Seal material: FPM

Applications

  • For power applications
Technical specifications
Filter Property Value
Pin number 8 pole
Contact connection crimp connection
Assembly cable assembly
Product type jack
Coding N
Orientation straight
Degree of protection (IP) IP67
Thread size M23
Type of locking screw locking
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
