1605602 | Phoenix Contact

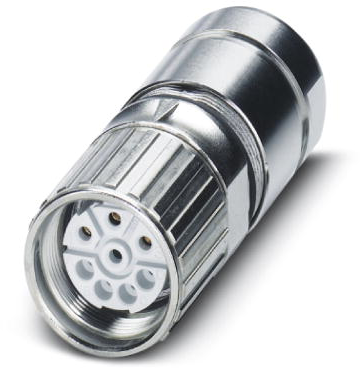

Jack, M23, 8 pole, crimp connection, screw locking, straight, 1605602
Unit Price (€ / pc.)
28.8218 € *
Available: 7 pcs.
Available in 5 Days: 384 pcs. - if ordered today
Total Price:
28.82 € *
Price list
Quantity
Price per unit*
1 pcs.
28.8218 €
5 pcs.
27.0844 €
15 pcs.
26.0372 €
50 pcs.
24.8948 €
150 pcs.
23.8595 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor-actuator connector, 1605602, Phoenix Contact
Cable connector, straight short, Screw locking, M23, number of positions: 4+3+PE, type of contact: Socket, cable diameter range: 7.5 mm - 14 mm, number of positions: 8, connection method: Crimp connection.
Features
- Shielded
- Consistent EMC protection for reliable connection solutions in the industrial environment
- N-coded
- Overvoltage category: III
- Degree of protection: IP67
- Seal material: FPM
Applications
- For power applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Type of locking | screw locking | |
| Coding | N | |
| Pin number | 8 pole | |
| Thread size | M23 | |
| Degree of protection (IP) | IP67 | |
| Contact connection | crimp connection | |
| Product type | jack | |
| Assembly | cable assembly |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
