1605588 | Phoenix Contact

Plug, M23, 8 pole, crimp connection, screw locking, straight, 1605588

Order No.: 62P4155
EAN: 4046356253840
MPN:
1605588
SF-7EP1N8AF4DU
Series: SF

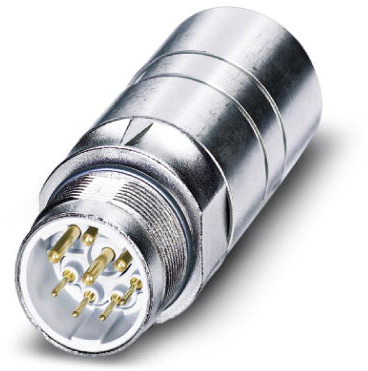

1605588 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
56.4774 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
1,129.55 € *
*incl. VAT plus shipping costs
Subject to prior sale
20 pcs.
56.4774 €

Coupler connector, 1605588, Phoenix Contact

Coupler connector, straight, Screw locking, M23, number of positions: 4+3+PE, type of contact: Pin, cable diameter range: 7.5 mm - 14 mm, number of positions: 8, connection method: Crimp connection.

Features

  • Shielded
  • N-coded
  • Overvoltage category: III
  • Degree of protection: IP67
  • Seal material: FPM

Applications

  • For power applications
Technical specifications
Pin number 8 pole
Type of locking screw locking
Contact connection crimp connection
Product type plug
Coding N
Assembly cable assembly
Orientation straight
Degree of protection (IP) IP67
Thread size M23
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
Substance description Lead
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
